特别为传送带或传送器设计,这个系列同样适用于广泛多样的工业领域

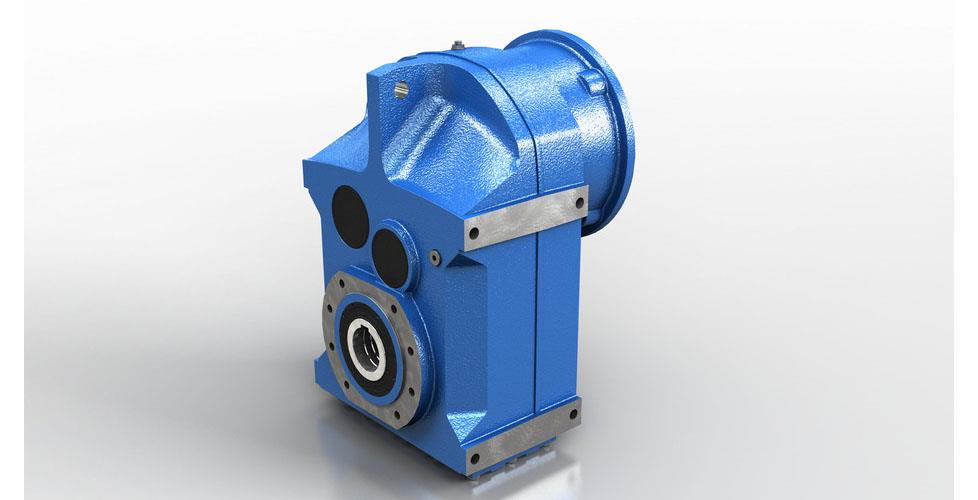

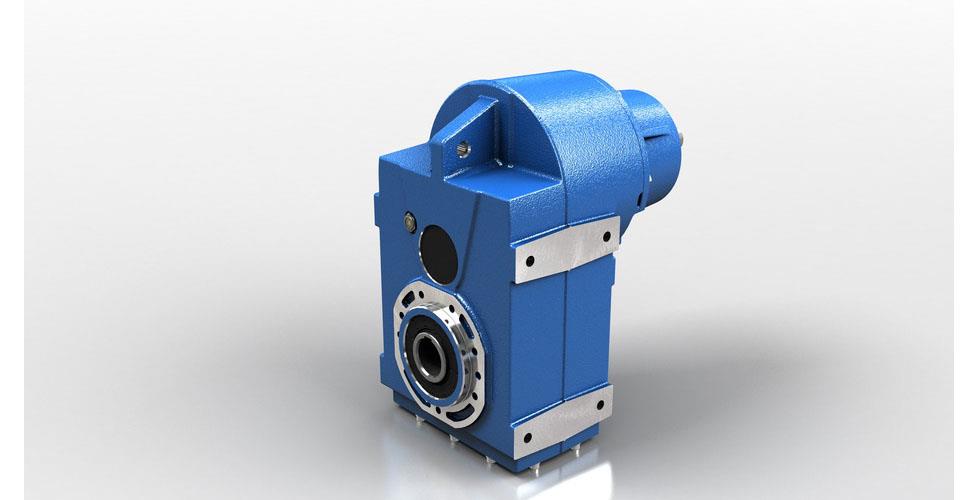

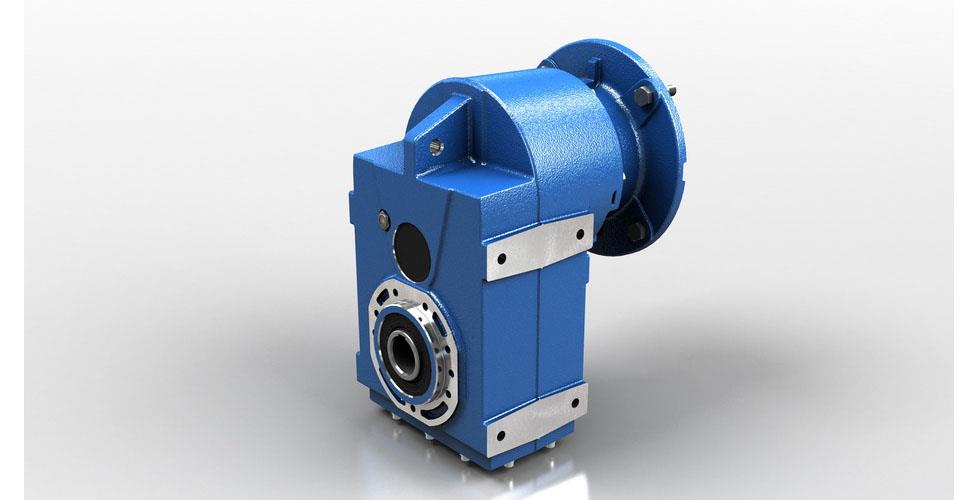

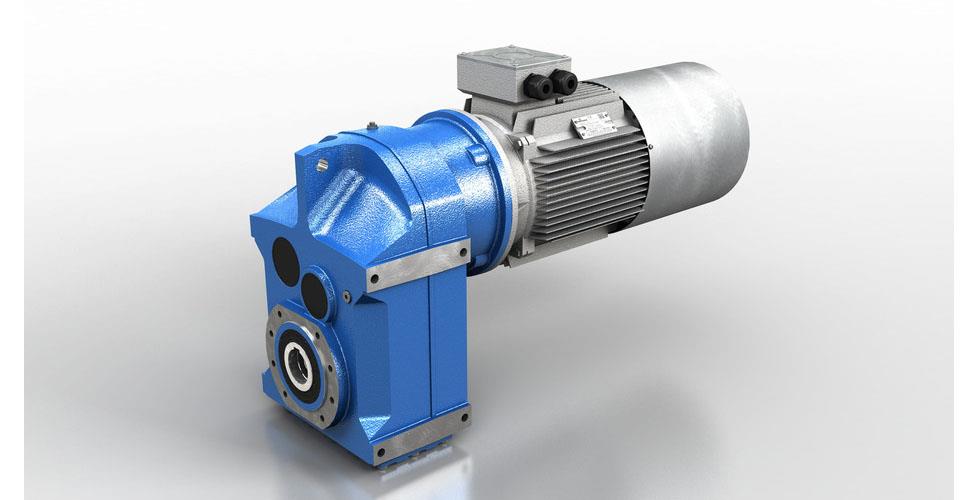

  S系列轴装齿轮减速器提供铸铁型号，可选规格050至125，减速比范围宽，确保在所有操作条件下具有效率。
  摩铎利S系列推出了两个新尺寸机型-140和150，可拓宽高功率螺旋伞齿轮减速机的安装范围。
  提供认证(高达大小125)：ATEX 2GD/3GD
  质量保证：自交付之日起两年。
  产品特性
  范围
  Downloads
  PRODUCT CHECK LIST
  发送询盘
  型号:050-060-080-100-125-140-150
  Power from 0,12 kW up to 45 kW with three phase 4 pole motors
  Reduction ratios between 4,06 and 394,69
  Torque max 9.500 Nm
  Admissible radial loads max 30.000 N
  型号:050-060-080-100-125
  Universal casing
  Versions:S...C Foot-flange mounting/Hollow shaf-S...D Foot-flange mounting/Solid shaft-S...L Foot-flange mounting/Shrink disc shaft
  Gearing with 2 and 3 reduction stages
  Modularity
  Gears hardened and tempered with shaved or ground profile
  Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
  Excellent mechanical strength
  Load capacity calculated to ISO 6336,DIN 3990 and AGMA 2001
  Painted with RAL 5010 blue epoxy-polyester powder
  型号:140-150
  Universal casing
  Versions:S...C Foot-flange mounting/Hollow shaft,S...L Foot-flange mounting/Shrink disc shaft
  Gearing with 2 and 3 reduction stages
  Gears hardened and tempered with ground profile
  Cases in EN-GJL-200 grey cast iron
  Load capacity calculated to ISO 6336,DIN 3990 and AGMA 2001
  Gearboxes supplied without lubricant
  Painted with RAL 5010 blue epoxy-polyester powder
